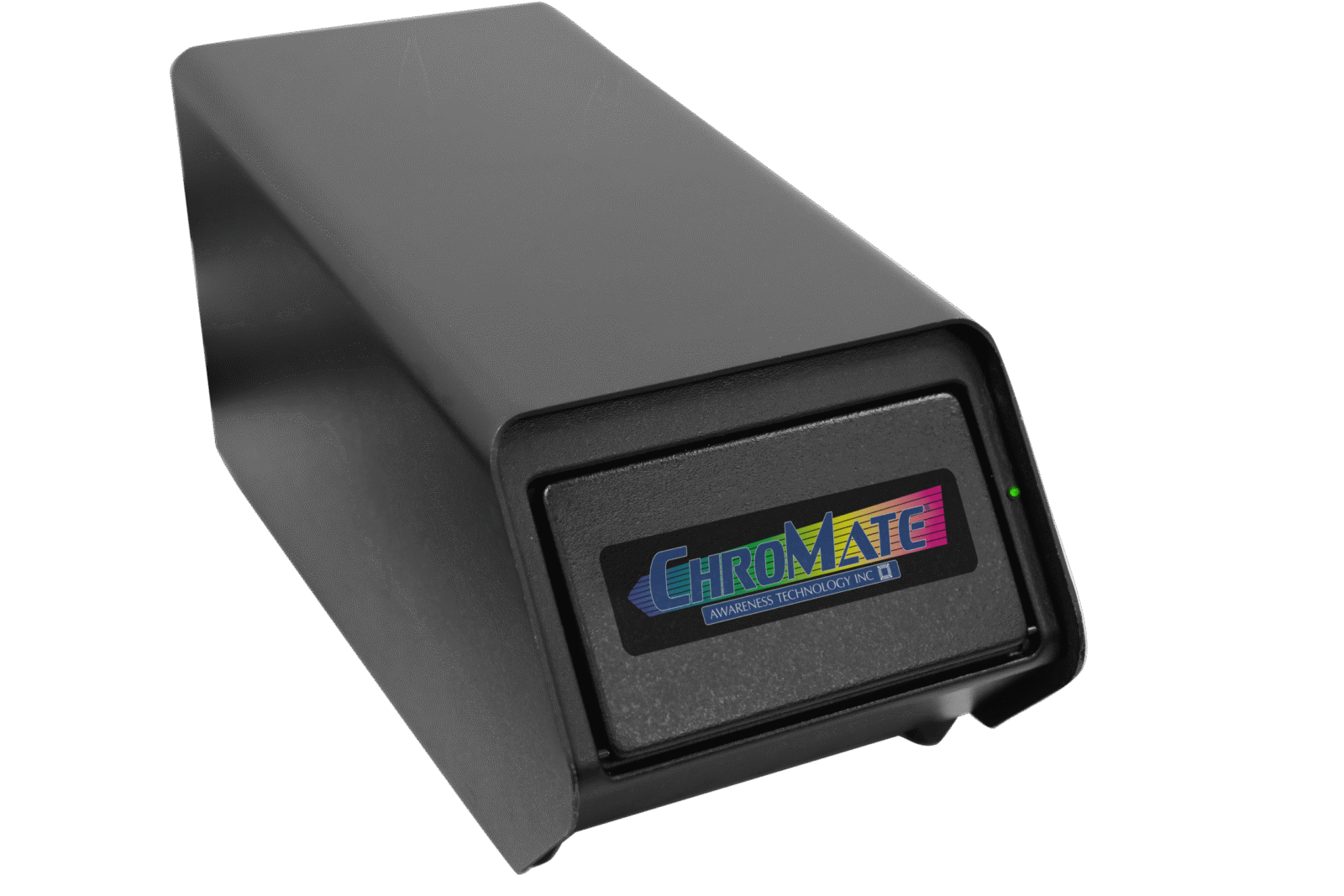

Chromate 4300 ELISA Plate Reader
ChroMate is a powerful yet compact 8-channel microwell plate reader which features: Precision optics, user-programmable assays, standard four filter model (405, 450, 492, and 630 nm) with (optional) six filter VIS model.
Features of the ChroMate
Economical open system & compact design
Reads an 96 microwell plate in 12 seconds
Multiple calculation modes
Dependable performance
Custom filter configurations available
Intuitive software, designed for ease of us
Optical measurement range 0.0 to 4.0 absorbance units (A)
Photometric accuracy (1% of the reading +/-0.010)from 0 to 1.5 ABS)
(2% of the reading +/-0.010)from 1.5 to 3.0 ABS)
Stability Drift of no more than 0.005A in 8 hours
Light source Halogen lamp source with lamp saver feature
Wavelengths Standard: 405, 450, 492, and 630 nm
Optional 6-filter: 405, 450, 492, 545, 600, and 630 nm (must be
ordered at time of manufacturing)
Filter options from 400 nm to 750 nm
Filter Type: IAD hardcoat interference, 10 nm half bandpass

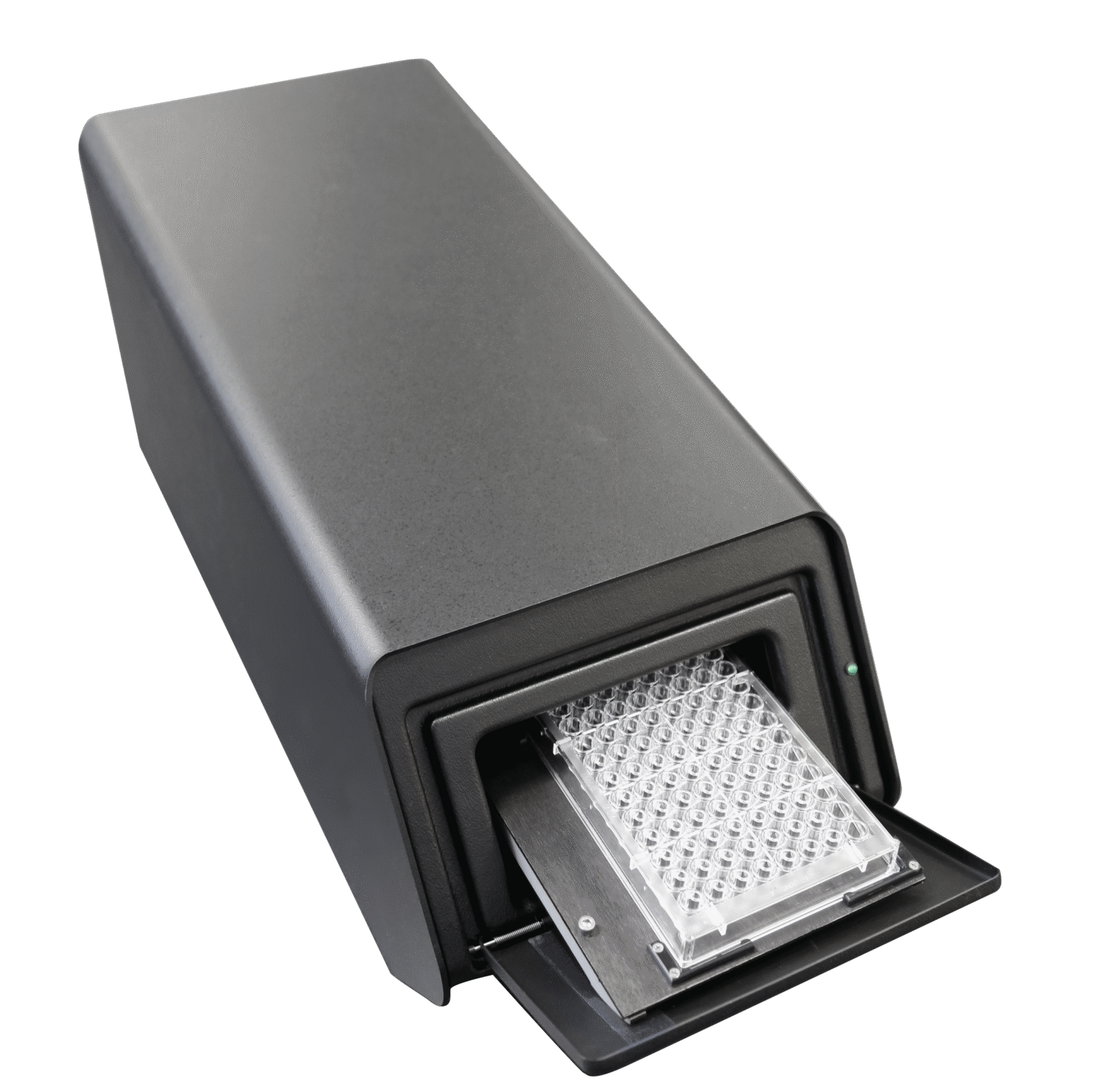

Vessel: Standard 96-well microwell plates, or strip trays
Power Requirements: 100V or 240V AC, 70W, 50-60Hz (auto-sensing)
PC connection: USB Port
Speed: Reads absorbances of 96 wells in about 12 seconds
Plate Transport: Stepper motor
PC interface with ChroMate Manager software – included. (PC not included)
Calculation Modes: Single point calibration, point-to-point curve fit, polynomial regression,
linear and sigmoidal regression (log & linear), cutoff absorbance,
multi-po int % absorbance
Additional Features: User-programmable open system, selectable plate formatting, alpha
numeric test naming, automatic interpretation options, duplicate well
options, curve plotting and editing, flags and error messages
Certifications: NRTL Listed, CE Mark
Awareness Technology Quality System is certified under ISO13485:2016
Enclosure: All metal enclosure
Dimensions: Approx. 7.5×8.0x16.5 (19×20.3x42cm)
Weighs 10 lbs. (4.5kg)
